Question: The conversion of solar energy into electric

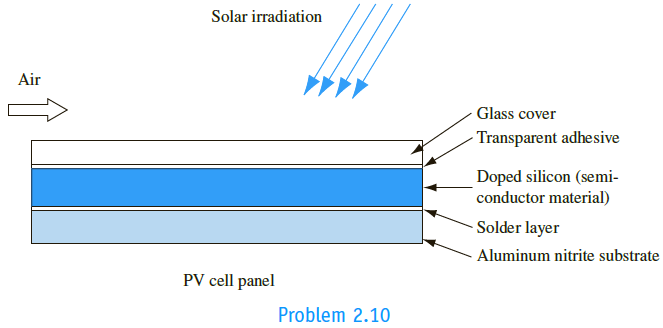

The conversion of solar energy into electric power by means of photovoltaic panels will be an important part of the transition from fossil fuels to sustainable energy sources. As described in detail in Principles of Sustainable Energy [14], a typical PV panel consists of a top layer of glass attached with a thin optically clear adhesive to a very thin layer of photoelectric material such as doped-silicon in which the incident solar irradiation is converted into electric energy. Experiments have shown that the solar to electric efficiency h in photovoltaic material such as silicon decrease with in- crease in temperature and is approximated by the expression, (= 0.55 - 0.001Tsilicon, where Tsilicon is the silicon temperature in K. In a typical installation where the solar irradiation is G 5 700 W/m2, 7% is reflected from the top surface of the glass, 10% is absorbed by the glass, and 83% is transmitted to the photovoltaic active layer. A part of the irradiation absorbed by the photo- voltaic material is converted to heat and the remainder is converted to electric energy. The silicon layer is attached by a 0.01-mm thick layer of solder to a 3-mm thick aluminum nitride substrate as shown in the schematic. Determine the electric power produced by this PV panel, assuming the following properties for the pertinent materials: conductivity of glass, kg = 1.4 W/m. K, conductivity of the adhesive ka = 145 W/m. K, the emissivity of glass is 0.90, heat transfer coefficient from the top of the panel to the surrounding air is 35 W/m2. K, and the surrounding air temperature is Tair = 20°C. The solar PV panel is 5 m long and 1 m wide and is situated on a roof where the bottom is considered insulated. (Hint: Start by applying the first law of thermodynamics to the photovoltaic-active layer and note that some of the irradiation will be converted to electricity and some of it transmitted thermally.) ![The conversion of solar energy into electric power by means of photovoltaic panels will be an important part of the transition from fossil fuels to sustainable energy sources. As described in detail in Principles of Sustainable Energy [14], a typical PV panel consists of a top layer of glass attached with a thin optically clear adhesive to a very thin layer of photoelectric material such as doped-silicon in which the incident solar irradiation is converted into electric energy. Experiments have shown that the solar to electric efficiency h in photovoltaic material such as silicon decrease with in- crease in temperature and is approximated by the expression, (= 0.55 - 0.001Tsilicon, where Tsilicon is the silicon temperature in K. In a typical installation where the solar irradiation is G 5 700 W/m2, 7% is reflected from the top surface of the glass, 10% is absorbed by the glass, and 83% is transmitted to the photovoltaic active layer. A part of the irradiation absorbed by the photo- voltaic material is converted to heat and the remainder is converted to electric energy. The silicon layer is attached by a 0.01-mm thick layer of solder to a 3-mm thick aluminum nitride substrate as shown in the schematic.
Determine the electric power produced by this PV panel, assuming the following properties for the pertinent materials: conductivity of glass,
kg = 1.4 W/m. K, conductivity of the adhesive
ka = 145 W/m. K, the emissivity of glass is 0.90, heat transfer coefficient from the top of the panel to the surrounding air is 35 W/m2. K, and the surrounding
air temperature is Tair = 20°C. The solar PV panel is 5 m long and 1 m wide and is situated on a roof where the bottom is considered insulated. (Hint: Start by applying the first law of thermodynamics to the photovoltaic-active layer and note that some of the irradiation will be converted to electricity and some of it transmitted thermally.)](../images/the-conversion-of-solar-energy-into-electric-power-by-means-of-photovoltaic-278898-1.jpg)
