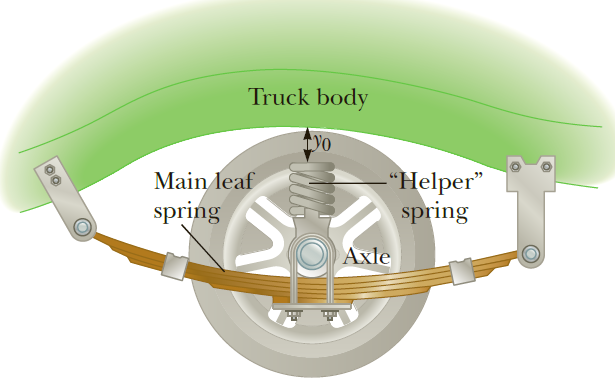

Truck suspensions often have âhelper springsâ that engage at high loads. One such arrangement is a leaf spring with a helper coil spring mounted on the axle, as shown in Figure P5.26. When the main leaf spring is compressed by distance y0, the helper spring engages and then helps to support any additional load. Suppose the leaf spring constant is 5.25 x 105 N/m, the helper spring constant is 3.60 x 105 N/m, and y0 = 0.500 m.
(a) What is the compression of the leaf spring for a load of 5.00 x 105 N?
(b) How much work is done in compressing the springs? Figure P5.26:
