Question: The grain-size characteristics of a soil

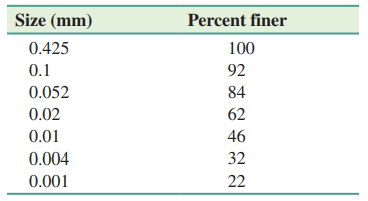

The grain-size characteristics of a soil are given in the following table
The grain-size characteristics of a soil are given in the following table


Draw the grain-size distribution curve.
Determine the percentages of gravel, sand, silt, and clay according to the MIT system.
Repeat Part b according to the USDA system.
Repeat Part b according to the AASHTO system.

Draw the grain-size distribution curve. Determine the percentages of gravel, sand, silt, and clay according to the MIT system. Repeat Part b according to the USDA system. Repeat Part b according to the AASHTO system.
